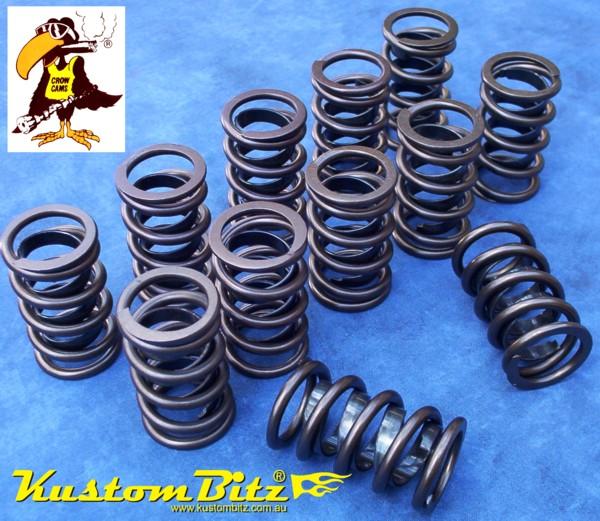

Ford 302 351 400M Cleveland V8 Valve Springs - Crow Cams Performance Double Spring 125lbs [CC-7333]

Overall Rating :
Performance camshaft Valve Springs ~ will also suit Ford Big Block Engines 370 to 427, 428, 460 Cubic inch
$160.00
Qty



Product Description

Part# CC-7333-16 : Crow Cams performance valve spring to suit the 302, 351 and 400M Cleveland Ford V8 engines.

These valve springs also suit the crossflow six cylinder engines and Ford big block engines 370 to 427, 428, 460.

Specifications; 2 Springs, no damper, LH outerspring, outerspring diameters OD = 1.437" & ID = 1.070" inch, inner damper ID = 0.810" inch, Spring rate = 330, Free height = 2.380", Installed height = 1.820" inch, Installed seat pressure = 125lbs, Pressure @ 0.500" inch lift = 290lbs, maximum lift = 0.650" inch, Solid spring compressed height = 1.050" inch, must use performance retainer 11700 and valve locks 4133.

MATCHING PARTS

Spring Retainers click here

Valve locks - collets, click here

NOTE: These valve springs will suit other engines, we have just chosen to list them by engine type to make it easier for you to browse.  Obviously if you know your installed height, spring diameter, maximum lift of your camshaft, the spring pressures you are looking for, etc. Then you can select any of the valve springs we have here on or web site for your application.

To learn more about performance valve springs selection then click here

IMPORTANT NOTE: Please ensure you select the right valve springs for your engine.  We have structured our web site to allow you to make an informed decision on what you are buying, so we encourage you to be thorough. KustomBitz will change over valve springs if you order the wrong ones and they are not used in anyway, however it will cost you a 35% restocking fee plus the additional cost in shipping.
